Crestron Flex Small Room Conference System for Microsoft Teams Rooms | UC-MM30-NC-T

Crestron Flex Small Room Conference System for Microsoft Teams Rooms

The Crestron UC-MM30-NC-T is a complete tabletop video conferencing system designed for small meeting rooms running Microsoft Teams Rooms. It combines the UC-2-T-V tabletop touch screen device with the UC-BRKT-200-S-T-ASSY bracket assembly to deliver a unified, certified Teams Rooms experience out of the box.

Product Description

The UC-MM30-NC-T packages the Crestron Flex UC-2-T-V touch screen controller and UC-BRKT-200-S-T-ASSY Mini PC bracket assembly into a single orderable SKU. The UC-2-T-V features a 7-inch touch display, four integrated MEMS microphones with acoustic echo cancellation, a 7-watt speaker, and PoE+ power — eliminating the need for a separate power supply at the table. The bracket assembly mounts the Intel Core Windows 11 IoT compute module and content ingest converter behind the display, keeping cables organized and the room clean.

Microsoft Teams Rooms software comes pre-installed and pre-configured, so the system is ready for one-touch meeting joins from day one. The XiO Cloud service (available separately) enables remote provisioning, monitoring, and management across any number of deployed rooms from a single dashboard.

Key Features

• Complete small room Teams Rooms system — touch screen, compute, audio, and camera-ready in one kit

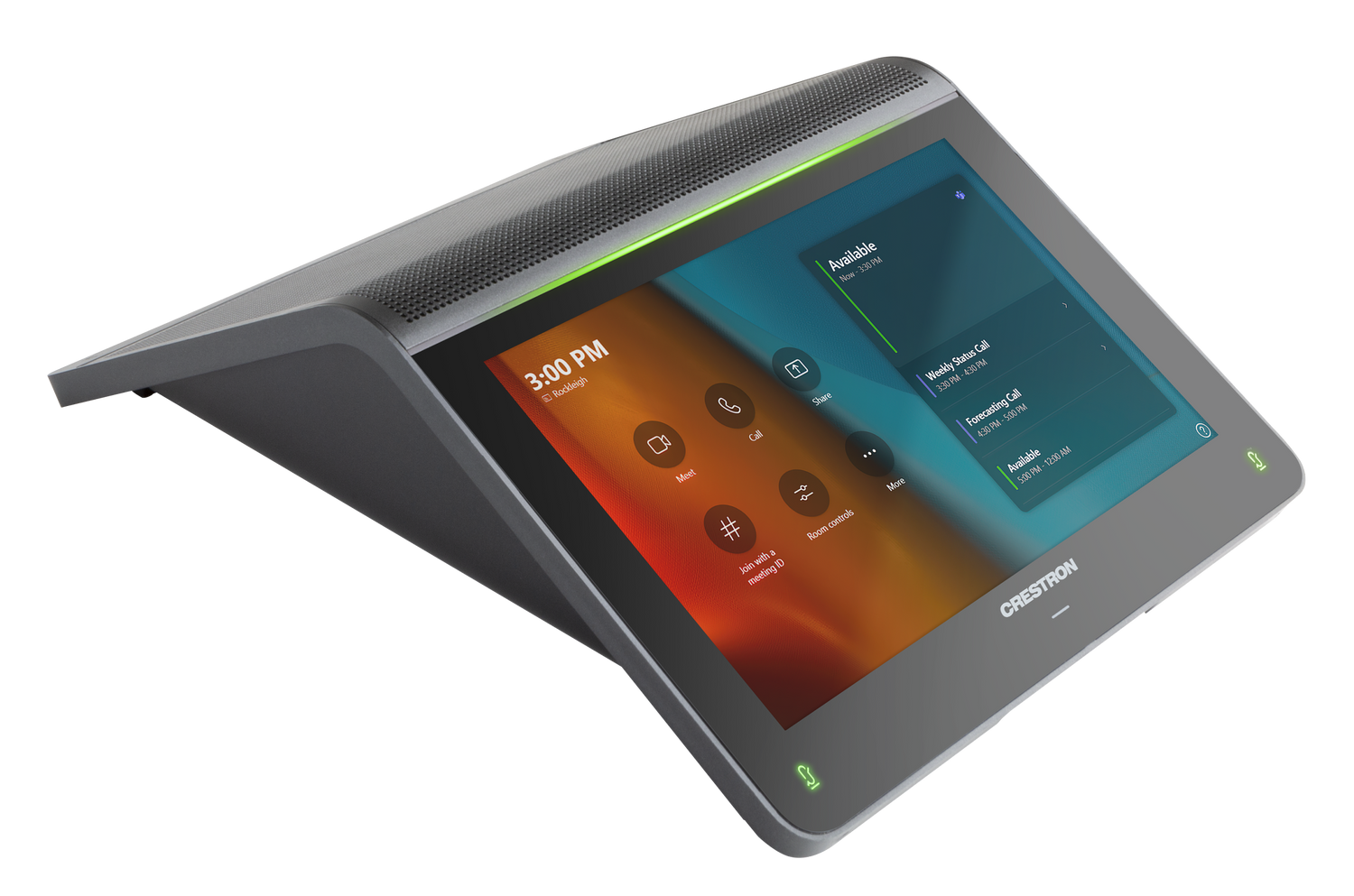

• 7-inch UC-2-T-V tabletop touch controller with integrated 4x MEMS microphone array and AEC
• Integrated 7W speaker for clear in-room audio without a separate speakerphone
• PoE+ powered touch controller — no local power supply required at the conference table
• Intel Core Mini PC running Windows 11 IoT Enterprise with Teams Rooms pre-installed

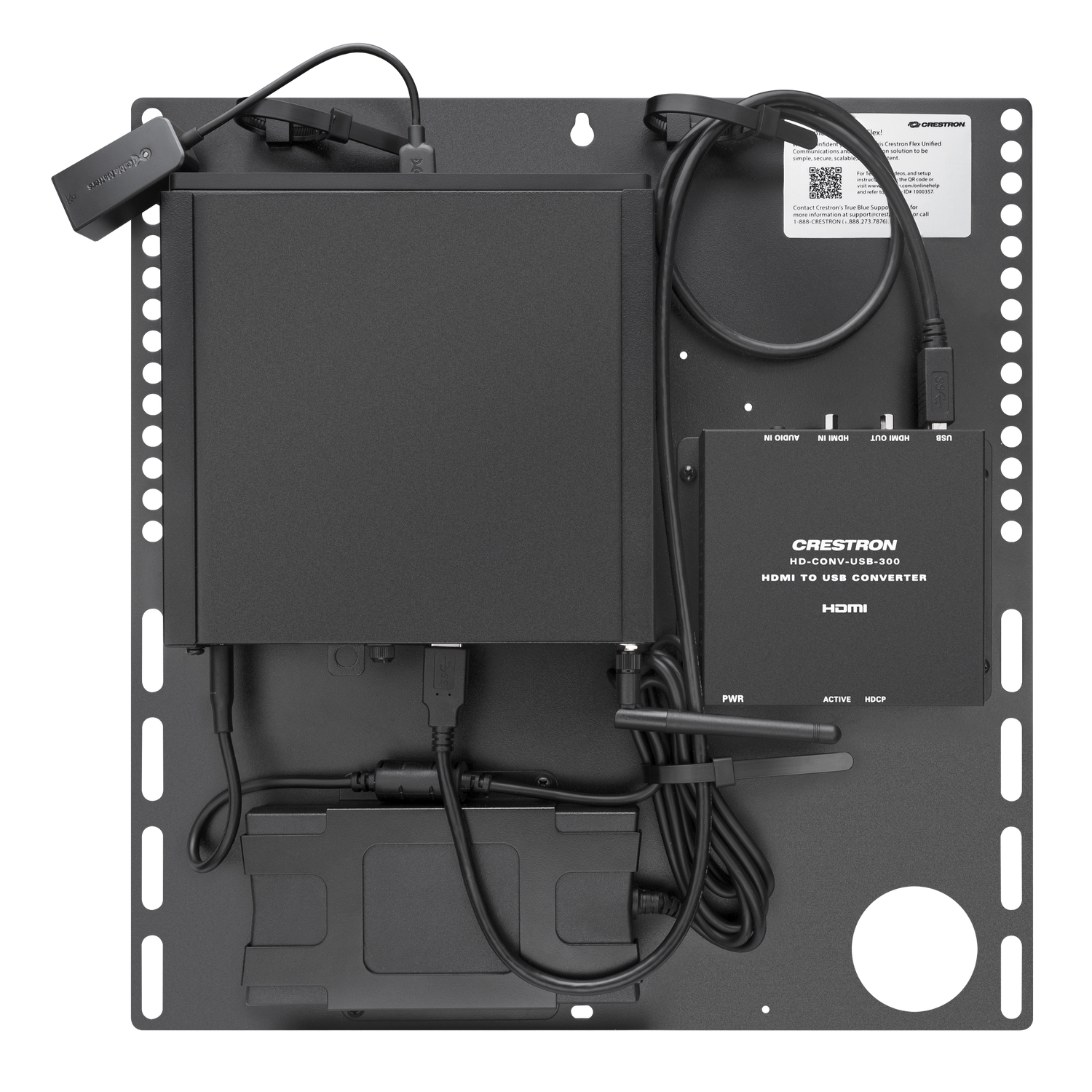

• UC-BRKT-200-S-T-ASSY bracket assembly mounts behind the display for a clean, cable-managed installation
• Supports single or dual video displays (sold separately)
• HD content ingest via HDMI converter for wireless or wired content sharing
• XiO Cloud compatible for centralized device management and remote provisioning
• Optional Crestron control system integration for room automation (lighting, shades, climate)
• Crestron Flex Care premium support subscription available

Typical Applications

• Small conference rooms and huddle spaces requiring a certified Microsoft Teams Rooms system
• Corporate offices standardizing on Microsoft Teams across meeting rooms of all sizes
• Education environments needing a simple, teacher-managed room conferencing solution
• Healthcare facilities requiring easy-to-operate one-touch video conferencing
• Any space where minimizing visible cabling and hardware footprint is a priority

Technical Specifications

Frequently Asked Questions

Does the UC-MM30-NC-T include a camera?

No — the system is camera-ready but a USB or HDMI camera must be added separately. Crestron offers several compatible cameras in the Flex ecosystem.

Does it require a dedicated power outlet at the table?

The UC-2-T-V touch screen is powered via PoE+ from a network switch, so no local power outlet is needed at the conference table. The bracket assembly requires a standard AC outlet near the display.

Can this system be managed remotely?

Yes. With the XiO Cloud service (sold separately), IT administrators can provision, monitor, and update the device remotely from a single cloud dashboard.

Is the UC-MM30-NC-T TAA compliant?

No — for TAA-compliant (Government Version) Teams Rooms systems, see the GV-suffix models in the Crestron Flex lineup.

Where can I purchase the UC-MM30-NC-T?

The UC-MM30-NC-T is available at Creation Networks, an authorized Crestron dealer.
