Crestron Flex Advanced Room Upgrade Pro Solution with Zoom Rooms | UC-BRKT-260-PRO-Z-ASSY
Crestron Flex Advanced Room Upgrade Pro Solution with Zoom Rooms | UC-BRKT-260-PRO-Z-ASSY is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron Flex Advanced Room Upgrade Pro Solution with Zoom Rooms | ...
Crestron Flex Advanced Room Upgrade Pro Solution with Zoom Rooms

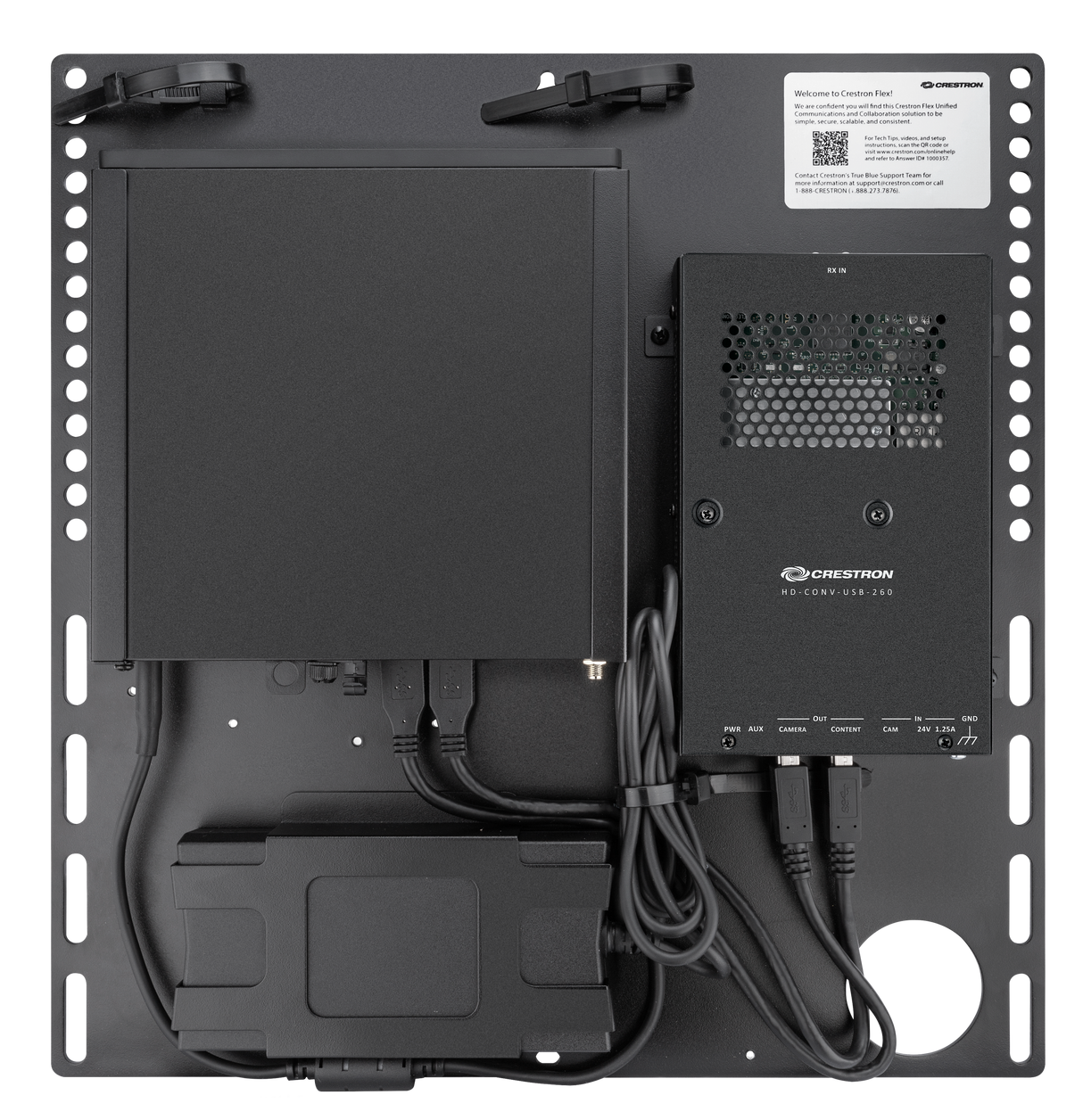

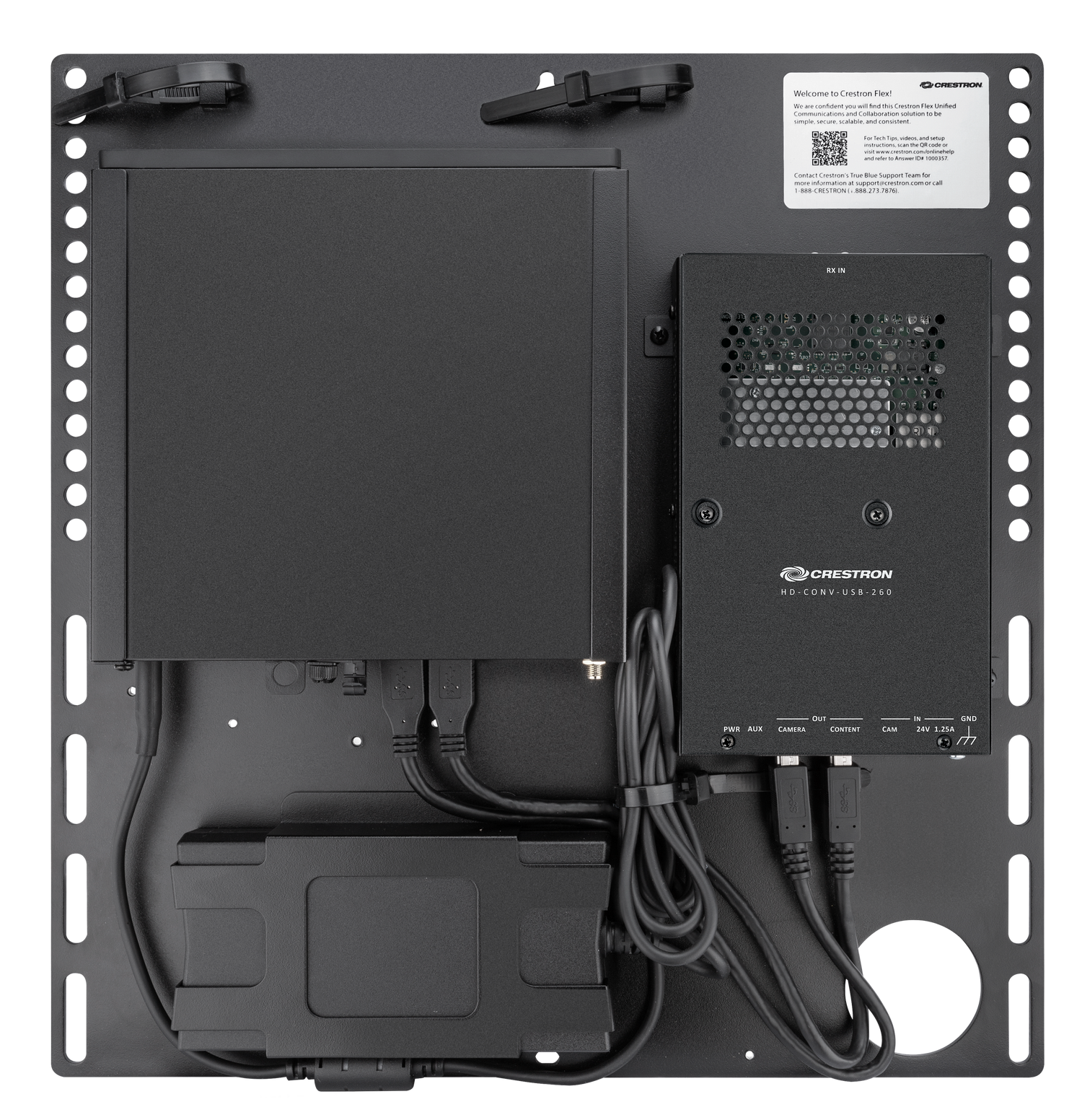

The Crestron UC-BRKT-260-PRO-Z-ASSY is a high-performance bracket assembly for building a complete Zoom Rooms video conferencing system with advanced content ingest and BYOD capability. It pairs an Intel Core i7 12th Gen Mini PC with a CAT5-to-USB 3.0 content ingest converter and supports an optional UC-PR Presentation Transmitter for full BYOD switching.
Product Description
The UC-BRKT-260-PRO-Z-ASSY is the advanced counterpart to the UC-BRKT-200-PRO-Z-ASSY. Where the 200-PRO uses an HDMI-to-USB converter for content ingest, the 260-PRO uses a CAT5-to-USB 3.0 converter, which enables the ingest connection to run over a longer cable run to a table or wall plate — useful in larger rooms where the content ingest point is far from the display.
The bracket assembly is compatible with the UC-PR Presentation Transmitter (sold separately or included in BRKTX upgrade kits), which enables full BYOD switching: a guest connects their laptop to the UC-PR, and the system automatically switches to the guest's UC conference platform. When the laptop is disconnected, the system returns to Zoom Rooms. The bracket supports up to three displays with 4K output and mounts behind the display for a clean installation.
Key Features
- Intel Core i7 12th Gen Mini PC for high-performance Zoom Rooms compute
- Zoom Rooms software pre-installed on Windows 11 IoT Enterprise
- CAT5-to-USB 3.0 content ingest converter for extended cable runs to table or wall plate
- Compatible with UC-PR Presentation Transmitter for full BYOD platform switching
- Supports up to three displays with 4K resolution output
- Rear-of-display bracket assembly for clean, cable-managed installation
- XiO Cloud compatible for remote device management and provisioning
- Optional Crestron control system integration for room automation
- Max weight: 8.0 lb
Typical Applications
- Large conference rooms requiring Zoom Rooms with BYOD and extended content ingest cable runs
- Rooms where the laptop connection point is at a table or wall plate far from the display
- IT teams deploying advanced Zoom Rooms Pro-tier hardware with BYOD requirements
- Integrators building Zoom Rooms configurations that require the UC-PR for BYOD platform switching
- Multi-display boardrooms needing 4K output and high-performance compute
Technical Specifications
| Specification | Details |
|---|---|
| Model | UC-BRKT-260-PRO-Z-ASSY |
| UC Client Software | Zoom Rooms (pre-installed) |
| Processor | Intel Core i7 12th Gen |
| OS | Windows 11 IoT Enterprise |
| Content Ingest | CAT5-to-USB 3.0 converter |
| BYOD Support | Via UC-PR Presentation Transmitter (sold separately) |
| Display Support | Up to three displays with 4K output |
| Weight (max) | 8.0 lb |
| Management | XiO Cloud service (sold separately) |
Frequently Asked Questions
- What is the difference between the UC-BRKT-260-PRO-Z-ASSY and the UC-BRKT-200-PRO-Z-ASSY?
- The 260-PRO uses a CAT5-to-USB 3.0 content ingest converter instead of an HDMI-to-USB converter, allowing the ingest connection to run over a longer distance. The 260-PRO also supports the UC-PR Presentation Transmitter for full BYOD platform switching.
- Is the UC-PR Presentation Transmitter included?
- No — the UC-PR is sold separately with the UC-BRKT-260-PRO-Z-ASSY bracket assembly. It is included in the complete BRKTX upgrade kit bundles (UC-ENGINE-BRKT-Z-UPGRD-BRKTX).
- Does this kit include a touch screen controller?
- No — a Crestron Flex touch screen controller is required and sold separately.
- Can the system be managed remotely?
- Yes. With the XiO Cloud service (sold separately), IT administrators can provision, monitor, and update the device remotely.
- Where can I purchase the UC-BRKT-260-PRO-Z-ASSY?
- The UC-BRKT-260-PRO-Z-ASSY is available at Creation Networks, an authorized Crestron dealer.
