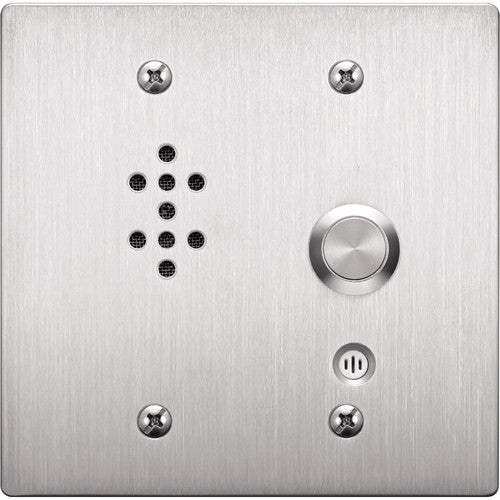

TOA N-8052DS Q 2-Gang Indoor Intercom Substation
TOA N-8052DS Q 2-Gang Indoor Intercom Substation is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA N-8052DS Q 2-Gang Indoor Intercom Substation
Product Overview
The TOA N-8052DS Q is a 2-gang version of the N-8050DS door station, designed to connect to the N-8000EX or N-8010EX IP intercom exchange for hands-free duplex communication with a master station. It includes a remote-controllable open collector control output for electric door lock integration and supports the audio trigger function. DEAL: On Sale.
Product Description
The N-8052DS Q operates on a two-wire connection to the N-8000 Series intercom exchange with a 2-wire echo-canceller transmission system. Its 2-gang wall-plate form factor allows installation in standard 2-gang electrical boxes using the included mounting hardware. The open collector output supports momentary contact closure (1 to 9 seconds, programmable) for controlling electronic door locks or access control equipment. Optional surface-mount back-boxes (YC-822 for indoor, YC-823 for outdoor) provide installation flexibility beyond standard in-wall boxes.
Key Features
| Feature | Benefit |
|---|---|
| 2-Gang Form Factor | Fits standard 2-gang electrical boxes for clean wall-plate installation |
| Hands-Free Duplex Communication | Full-duplex voice without pressing a button |
| Two-Wire Connection | Simple, low-cost cabling to the N-8000EX/N-8010EX exchange |
| Open Collector Control Output | Programmable 1-9 second momentary contact for door lock control |
| Audio Trigger Function | Enables automated event triggering based on audio detection |
| Separate Mic and Speaker | Independent transducers for optimized duplex audio performance |
| Optional Surface-Mount Back-Boxes | YC-822 (indoor) or YC-823 (outdoor) for flush or surface installs |
| N-8000 System Compatible | Direct integration with N-8000EX and N-8010EX intercom exchanges |
Typical Applications
The TOA N-8052DS Q is suited for access control and building intercom systems: office building entrances requiring hands-free visitor communication with a receptionist master station, educational facilities with controlled-access interior doors, healthcare settings with patient room or ward entry points, and any N-8000 Series deployment where a 2-gang wall-plate substation is preferable to the 1-gang N-8050DS. For complete N-8000 system components, see TOA intercoms at Creation Networks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TOA N-8052DS Q |
| Compatible Exchange | N-8000EX, N-8010EX |
| Power Source | 48V DC (from exchange) |
| Power Consumption | 2.4W active |
| Wiring | 2-wire connection to exchange |
| Speech Method | Hands-free half-duplex (echo-canceller) |
| Audio Frequency Range | 300 Hz - 7 kHz |
| Control Output | Open collector, momentary 1-9 s, non-polarity |
| Operating Temperature | 14 to 122 F (-10 to 50 C) |
| Dimensions (W x H x D) | 4.72 x 4.72 x 1.99" (approx. 120 x 120 x 50.5 mm) |
| Weight | 1.16 lb (0.53 kg) |
| Optional Back-Boxes | YC-822 (indoor surface-mount), YC-823 (outdoor surface-mount) |
FAQ
- What is the difference between the N-8052DS Q and the N-8050DS? The N-8052DS Q is the 2-gang version of the N-8050DS, fitting a larger wall-plate footprint with identical functionality.
- Does it require a separate power supply? No — the unit draws 48V DC directly from the N-8000EX or N-8010EX exchange over the two-wire connection.
- Can it control a door lock? Yes — the open collector output provides a programmable 1 to 9 second momentary contact closure to activate electronic door locks or access control relays.
- What cable type is used? Standard two-wire cable to the N-8000EX or N-8010EX intercom exchange.
- Is surface-mount installation supported? Yes — optional YC-822 (indoor) or YC-823 (outdoor) surface-mount back-boxes accommodate installations where in-wall boxes are not available.
