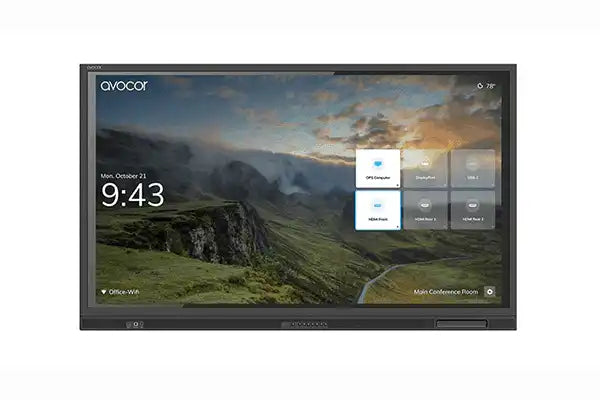

Avocor 55" E Series Interactive Display - AVE-5530

Avocor SKU: AVE-5530
No reviews
Price:
$2,699.00

Description

The Avocor AVE-5530 55" 4K Interactive Touch Display utilizes optimized touch and glass technology to provide a smooth and extremely accurate, low-latency writing experience as well as object recognition. The native 4K display with anti-fingerprint, anti-glare glass also allows users to easily switch between using a pen, finger, and palm create for a fluid collaborative environment for users in real-time and introducing Avocor’s UiQ touch-enabled interface. Ideal for BYOD, a single Type-C connector instantly connects any Windows laptop to the display with a 4K@60Hz signal, providing power for the laptop and hard-wire ethernet. There is also an Intel OPS slot for onboard computing. A 30W soundbar provides exceptional audio and by adding a camera, the AVE-5530 becomes a powerful, inexpensive interactive videoconference tool.
  • 4K@60Hz, 3840 x 2160 Resolution
  • Up to 20-point Avocor Intelligent Touch
  • 0.07in (2mm) optically bonded, anti-glare, anti-fingerprint glass
  • 370 (cd/m2) Brightness
  • 2 x 15W forward-facing built-in speakers
Diagonal size 55"
Model number AVE-5530
Backlight Direct LED
Aspect Ratio 16:09
Resolution 4K@60Hz, 3840 x 2160
Response time 8ms
Brightness (average) 370 (cd/m2)
Contrast ratio(average) 4000:01:00
Viewing angle O 178° / 178
Supported colors 30-bit deep color
Display orientation Landscape
CONNECTIVITY
Guest inputs 1 x HDMI 2.0, 1 x USB-B Touch 3.0, 1 x USB-A 3.0 Hub, 1 x Type-C
Side inputs 2 x HDMI 2.0, 1 x DisplayPort 1.2, 1 x USB-B 3.0 touch, 1 x VGA with audio input, 1 x USB-A 3.0, 1 x USB service port, HDMI Out (4K@60Hz), 1 x LAN Ethernet (RJ-45) out
Audio 1 x 3.5mm audio out, 1 x optical (SPDIF)
Control OPS slot 1 x RS-232, 1 x LAN ethernet (RJ-45) in | Yes, 3840 x 2160 @60Hz
DISPLAY & REMOTE CONTROL FUNCTIONS
Auto-source detection Yes
Source preview Yes
Blank Yes
Freeze Yes
TOUCH SYSTEM
Touch Up to 20 point Avocor Intelligent Touch, supports 1 x fine tip stylus
Glass 2mm optically bonded, anti-glare, anti-fingerprint
Supporting operating system Windows 8/10, Mac OS*, Linux*
AUDIO
Built-in speakers 2 x 15W forward facing
PHYSICAL SPECIFICATIONS
Product dimensions 1286 x 802 x 78.4 mm | 50.63 x 31.57 x 3.09 in
Shipping dimensions 1415 x 932 x 270 mm | 55.71 x 36.69 x 10.63 in
Weight Net: 32.5 kg|71.65 lbs / Gross: 44.5 kg|98.11 lbs
Wall mount VESA 400 x 400 mm | 15.75 x 15.75 in
Handles 2
POWER
Power supply AC100-240V (Worldwide)50/60Hz
Maximum power consumption <220W
Standby ≦ 0 .5 W
ENVIRONMENTAL
Operating temperature 0 °C ~ 40 °C
Storage temperature -20 °C ~ 60 °C
Humidity 20% ~ 80%
Warranty Terms and conditions vary via region, please visit www.avocor.com/faq/avocor-global-warranty
